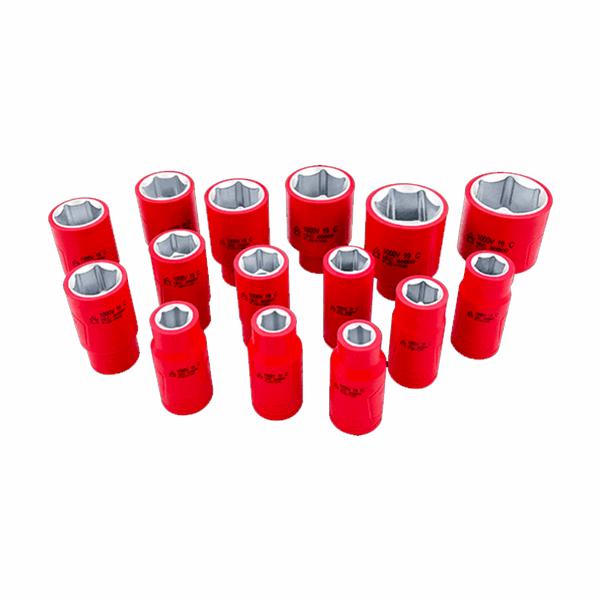

U0408V INSULATED VDE 1/2" METRIC SOCKETU0408V

-Made from high-quality 50BV steel using cold forging.
-6-point socket design for greater contact surface between sockets and fasteners, locks force more firmly, reduces wear and rounding off at corners issues.
-Tested at 10,000V high voltage by an internationally accredited institute and proved to meet the DIN EN IEC 60900:2018 standard.



U0204V INSULATED VDE 1_4 METRIC SOCKET 小圖1
Insulated VDE 1
/2" Metric Socket

    ITEM NO. D3 D1 D2 L
U0404V 4mm 11mm 11mm 42mm
U0405V 5mm 12mm 11mm 42mm
U0455V 5.5mm 13mm 11mm 42mm
U0406V 6mm 13mm 17mm 42mm
U0407V 7mm 15mm 17mm 42mm
U0408V 8mm 17mm 17mm 42mm
U0409V 9mm 17mm 17mm 42mm
U0410V 10mm 17mm 18mm 42mm
U0411V 11mm 17mm 20mm 42mm
U0412V 12mm 17mm 21mm 42mm
U0413V 13mm 17mm 22mm 42mm
U0414V 14mm 17mm 24mm 42mm
